Best Thunderbolt KVM Switch for Mac and Windows 2026TB4 vs USB4

Search for a "Thunderbolt KVM switch" and you run into a strange problem: almost none exist. Thunderbolt and USB-C use the same connector, so the market sells dozens of USB-C KVMs with "Thunderbolt" scattered through the listing, but genuine Thunderbolt-certified two-computer KVMs are rare and expensive. The honest answer for most people searching this is that you don't need a true Thunderbolt KVM at all. A USB4 or USB-C switch does the same job for a fraction of the price, and the cases where Thunderbolt actually earns its cost are narrow and specific.

This guide covers the one real Thunderbolt 4 KVM you can buy today, plus the two USB4 and USB-C switches that handle what most Mac-plus-Windows desks actually need. The decision comes down to bandwidth: Thunderbolt 4 and USB4 both top out at 40Gbps, which already covers dual 4K at 60Hz. You only step up to a Thunderbolt-specific switch when you're pushing 8K, several high-refresh 4K panels, an external GPU, or fast external storage across the switch. We've laid the whole decision out below so you can match the hardware to your chip and workflow instead of overpaying for a spec you'll never use.

Bottom line

The only true Thunderbolt KVM: The TESmart HDC202-X24 Thunderbolt 4 KVM ($680-$720) is the one certified dual-monitor Thunderbolt 4 KVM on the market. A real 40Gbps Thunderbolt link with 60W laptop charging, dual 4K@60Hz, shared Gigabit Ethernet, and EDID emulation. Worth it if you specifically need the Thunderbolt link.

Best for most people: The Cable Matters 20Gbps USB4 Switch ($50-$60) shares one USB-C or Thunderbolt 4 monitor or dock between two computers and passes 140W of charging through. It does what most "Thunderbolt KVM" shoppers actually want at a fraction of the price.

Best budget dual-monitor pick: The Cable Matters Dual 4K@60Hz USB-C KVM ($45-$55) runs two 4K@60Hz screens off two USB-C laptops over separate HDMI and DisplayPort outputs. No charging and no EDID, but the cheapest way to share two monitors between two laptops.

Quick Comparison

Do You Actually Need a Thunderbolt KVM? Start Here

Most "USB-C vs Thunderbolt" confusion comes from the connector. They're physically identical, so a listing can say "Thunderbolt compatible" while the device inside is plain USB-C. What matters is the protocol running through the port, because that sets the bandwidth, and bandwidth is what decides how many displays and how much data the switch can carry.

The key line: Thunderbolt 4 and USB4 both carry 40Gbps, and 40Gbps already covers dual 4K at 60Hz. So for a typical two-monitor productivity desk, a USB4 switch and a Thunderbolt 4 KVM deliver the same picture. You're paying extra for a certified Thunderbolt KVM only when your workflow exceeds what 40Gbps holds.

You need a true Thunderbolt KVM if:

• You run 8K, or two or more 4K panels above 60Hz, across the switch
• You move an external GPU or a fast NVMe enclosure through the switch
• Your hosts are Thunderbolt-only docks or displays that expect a certified Thunderbolt link

A USB4 or USB-C switch is the right call if:

• You share one or two 4K@60Hz monitors between a laptop and a desktop
• Your work is browsing, office apps, video calls, and standard creative software
• You want to keep the cost near the price of a nice cable rather than a small monitor

Which Thunderbolt Does Your Mac Have?

If you're on Apple Silicon, your chip already tells you whether a Thunderbolt KVM can even do anything extra for you.

Even if you own one of the Thunderbolt 5 Macs, that alone isn't a reason to buy a Thunderbolt KVM. Two 4K@60Hz monitors sit comfortably inside the 40Gbps that a USB4 switch already provides. Thunderbolt 5 only matters when you're driving the kind of 8K or multi-high-refresh setup that a KVM at this tier isn't built for in the first place. There is also a separate limit worth knowing: base M1 and M2 chips can only drive one external display over USB-C regardless of the switch, which is an Apple Silicon constraint, not a switch limitation. We cover that in detail in the USB-C KVM guide for Mac and Windows.

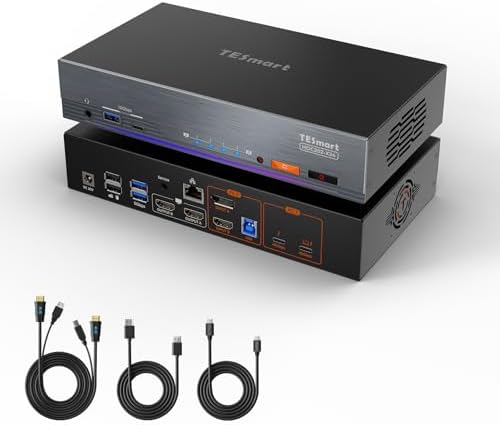

TESmart HDC202-X24: The Only True Thunderbolt 4 KVM

The TESmart HDC202-X24 ($680-$720) is the first dual-monitor Thunderbolt 4 KVM to ship, and for now it's effectively the only certified one you can buy. It's built for a specific pairing: one USB-C laptop on a real Thunderbolt 4 host port, and one desktop feeding video in over DisplayPort and HDMI. The laptop side gets a 40Gbps Thunderbolt 4 link with 60W of charging over a single cable, and both hosts share the switch's Gigabit Ethernet, USB peripherals, and audio.

It's important to be precise about the layout, because it isn't two symmetrical Thunderbolt ports. The laptop connects over Thunderbolt 4 USB-C. The desktop connects with one DisplayPort 1.2 and one HDMI 2.0 cable. Both monitors then connect to the switch's two HDMI 2.0 outputs. That means the displays are driven over HDMI, so this isn't the switch for an Apple Studio Display or any USB-C-only monitor. Video tops out at 4K@60Hz 4:4:4, with high-refresh modes up to 1080p@240Hz and 1440p@120Hz for gaming.

Where it earns the Thunderbolt label is the laptop host: a genuine 40Gbps Thunderbolt 4 connection, 60W Power Delivery so a MacBook charges from the same cable that carries video and data, per-input EDID emulation so windows stay put when you switch, and shared Gigabit networking so both machines reach the network through one Ethernet run. Switching happens by hotkey, front-panel button, mouse wheel, or IR remote.

Where it falls short: It costs several times more than the USB4 and USB-C switches below, and most people won't use what they're paying for. The 60W charging is enough for a MacBook Air or a 14-inch MacBook Pro under normal load, but a 16-inch MacBook Pro under sustained heavy work will top up slowly. The HDMI-only outputs rule out USB-C-native monitors. And one documented quirk: a laptop whose charging protocol doesn't negotiate 20V can fall back to 7.5W, which has shown up on some Lenovo ThinkPad models. If you don't specifically need the certified Thunderbolt link or the Gigabit passthrough, the Cable Matters switch below does the practical job for far less.

Price: $680-$720

Cable Matters 20Gbps USB4 Switch: Best for Most People

The Cable Matters 20Gbps USB4 Switch ($50-$60) is the answer for most people who typed "Thunderbolt KVM" into a search bar. Instead of building the whole KVM around a Thunderbolt chip, it takes one USB-C or Thunderbolt 4 monitor, or a full Thunderbolt 4 dock, and shares it between two computers. You plug the switch's pigtail into your monitor or dock, run the two included USB4 cables to your laptops, and a button or the RF remote hands the entire link, video, data, and power, to whichever machine you want.

That design is why it punches so far above its price. Pair it with a Thunderbolt 4 dock and you get a Thunderbolt-class docking experience shared across two computers: the dock's Ethernet, card reader, SSD, and every port switch together. On a single USB-C or Thunderbolt 4 monitor it drives up to 8K@30Hz or 4K@144Hz on Windows, and 4K@60Hz on macOS. It passes up to 140W of charging to the active computer, which is more headroom than the dedicated Thunderbolt KVM above.

The trade-off is that it switches one USB-C link rather than two independent HDMI outputs, so your displays and ports live on the monitor or dock you connect it to. For a dual or multi-monitor setup on Windows you'd use a Thunderbolt 4 dock with MST; on macOS the single-cable path drives one external display. For the very common case of one high-res screen or one good dock shared between a work laptop and a personal machine, this is the smart buy.

Where it falls short: It isn't a standalone KVM with its own display outputs and peripheral hub. If you want two separate monitors plugged directly into the switch, look at the dual-monitor pick below or a docking-class USB-C KVM. It also charges only the active computer at a time, not both. But as the "do I really need Thunderbolt" answer, it's hard to beat.

Price: $50-$60

Cable Matters Dual 4K@60Hz USB-C KVM: Best Budget Dual-Monitor Pick

The Cable Matters Dual 4K@60Hz USB-C KVM ($45-$55) is the cheapest clean way to run two 4K monitors off two laptops. Each laptop connects over a single USB-C cable using DisplayPort Alt Mode, the switch drives two external screens through separate HDMI and DisplayPort outputs, and four USB 3.0 ports carry your keyboard, mouse, webcam, and a drive between both machines. A front button or the included RF remote flips everything at once.

It's aimed squarely at two-laptop desks. Both hosts need USB-C with DisplayPort Alt Mode, which covers essentially every Thunderbolt 3, 4, and 5 laptop as well as most modern USB-C Windows machines. On Windows or Linux it delivers two independent 4K@60Hz extended displays. That makes it a solid budget option for anyone running a work laptop and a personal laptop side by side who doesn't want to spend near a monitor's price on switching.

Where it falls short: The compatibility list is strict, and honesty matters here. It works with laptops only, not desktop PCs, Chromebooks, or HDMI and DisplayPort video sources. It doesn't charge your laptops, since the Micro-B port only powers the switch itself. There's no EDID emulation, so windows can rearrange when you switch. And on a MacBook the two outputs mirror rather than extend, because base Apple Silicon chips drive only one external display over USB-C. For a Windows-plus-Windows or Windows-plus-Linux two-laptop desk it's an easy budget win; for a Mac that needs two extended displays, the switch can't get around Apple's hardware limit, and the USB-C KVM guide covers the DisplayLink workaround for that case.

Price: $45-$55

Thunderbolt vs USB4 vs USB-C KVM: Which You Actually Need

Here's the whole decision in plain terms, because the marketing blurs it on purpose.

A USB-C KVM routes DisplayPort Alt Mode video and USB data through a USB-C connection, usually at 10 to 20Gbps. That's enough for one 4K@60Hz display plus peripherals, which is what most two-computer desks need. The Cable Matters Dual 4K USB-C KVM sits here.

A USB4 switch carries 20 to 40Gbps and is designed to pass a full USB-C or Thunderbolt 4 monitor or dock through to two machines. It gets you Thunderbolt-class docking without a Thunderbolt price tag, which is why the Cable Matters 20Gbps USB4 Switch is the pick for most people.

A Thunderbolt 4 KVM uses a certified 40Gbps Thunderbolt link with guaranteed dual-4K support and a proper docking feature set. The TESmart HDC202-X24 is that switch. It's the right buy when you specifically need the certified link, the guaranteed dual-4K, or the shared Gigabit Ethernet, and you're fine paying for it.

The pattern to remember: dual 4K@60Hz fits inside 40Gbps, so Thunderbolt 4 and USB4 give you the same result there. The reason to pay for real Thunderbolt is a workflow that pushes past 40Gbps, which for a two-computer KVM means 8K, multiple high-refresh 4K panels, an external GPU, or fast external storage moving across the switch. If none of those describe your desk, the USB4 switch is the honest recommendation.

Is There a Thunderbolt 5 KVM Switch Yet?

Not yet. As of July 2026, there's no shipping dual-monitor Thunderbolt 5 KVM switch you can add to a cart. A Thunderbolt 5 KVM has been announced and is in development, but it isn't available to buy, so it isn't a pick in this guide, on purpose. Featuring a product you can't purchase would waste your time.

The good news is that you're not missing anything by buying Thunderbolt 4 or USB4 today. Thunderbolt 5's extra bandwidth, 80Gbps and up to 120Gbps with Bandwidth Boost, matters for 8K workflows, several high-refresh 4K displays at once, and external GPUs. A two-computer KVM sharing dual 4K@60Hz monitors doesn't come close to saturating the 40Gbps that Thunderbolt 4 and USB4 already provide. When a certified Thunderbolt 5 KVM does ship and the price settles, we'll add it here. Until then, the Thunderbolt 4 and USB4 switches above are the current answer.

Frequently Asked Questions

Is there a real difference between a Thunderbolt KVM and a USB-C KVM?

Yes, but it's about bandwidth, not the connector. A certified Thunderbolt 4 KVM guarantees a 40Gbps link with dual-4K support and a full docking feature set. Many "USB-C KVM" switches run at 10 to 20Gbps, which is fine for a single 4K@60Hz display but not for multiple high-resolution screens over one connection. A USB4 switch sits in between, carrying up to 40Gbps and able to pass a Thunderbolt 4 monitor or dock through. For a standard two-monitor desk, the USB4 or USB-C option does the same visible job as the Thunderbolt KVM for far less money.

Will a Thunderbolt 4 KVM work with my MacBook?

Yes. Every Apple Silicon MacBook has at least Thunderbolt 4 or USB4, so a Thunderbolt 4 KVM connects and charges over one USB-C cable. Two caveats apply. The TESmart HDC202-X24 drives its displays over HDMI, so it won't run an Apple Studio Display or any USB-C-only monitor, and base M1 and M2 chips can only extend to a single external display regardless of the switch. If you have an M4, M5, or a Pro or Max chip, dual external displays work as expected within the switch's HDMI outputs.

Can a USB4 switch really replace a Thunderbolt KVM?

For most desks, yes. The Cable Matters 20Gbps USB4 Switch shares a USB-C or Thunderbolt 4 monitor or dock between two computers and passes 140W of charging through. Paired with a Thunderbolt 4 dock, it gives two machines a shared Thunderbolt-class docking experience. Where it differs from a dedicated KVM is that it switches one USB-C link rather than offering two independent display outputs and its own peripheral hub, so your ports live on the connected dock or monitor.

Do I need Thunderbolt to run two 4K monitors?

No. Two 4K displays at 60Hz fit inside the 40Gbps that both Thunderbolt 4 and USB4 provide, and even a well-built USB-C KVM can drive two 4K@60Hz screens over separate HDMI and DisplayPort outputs. You'd only need Thunderbolt-specific bandwidth if you're running those panels above 60Hz, moving to 8K, or adding an external GPU or fast storage on the same link.

Why is the Thunderbolt KVM so much more expensive?

Certified Thunderbolt hardware carries licensing and testing requirements, uses a more capable controller chip, and includes features like guaranteed dual-4K, shared Gigabit Ethernet, and per-input EDID emulation. That's real engineering, but most two-computer desks don't use the headroom it buys. If your workflow really needs the certified link, the cost is justified. If it doesn't, a USB4 switch delivers the same everyday result for much less.

Will my keyboard, mouse, and webcam switch between both computers?

Yes. On all three switches, USB peripherals move with the active host. Your keyboard, mouse, webcam, and USB drives plug into the switch and follow whichever computer you've switched to. Hardware keyboard features work across both machines; software-driven macros and custom lighting need their companion app installed on each host to work fully.
