Adding a second monitor is one of the highest impact upgrades you can make to a desk setup. Multiple productivity studies have found 20 to 30 percent improvements in task completion time with dual monitors. The problem is that most people just stack two screens on their desk surface and call it done, which eats up space, hurts their posture, and creates a cable mess.
This guide covers the full setup from start to finish. Choosing a layout, mounting your screens, connecting everything, and managing the cables so it actually looks intentional.
For most people, the Moontower Dual Monitor Arm by UPLIFT Desk ($89) is the best starting point. It handles two screens up to 27 inches, clamps to any desk edge, and leaves your entire desk surface clear. Pair it with a USB-C to DisplayPort cable ($15-20) and you're connected.

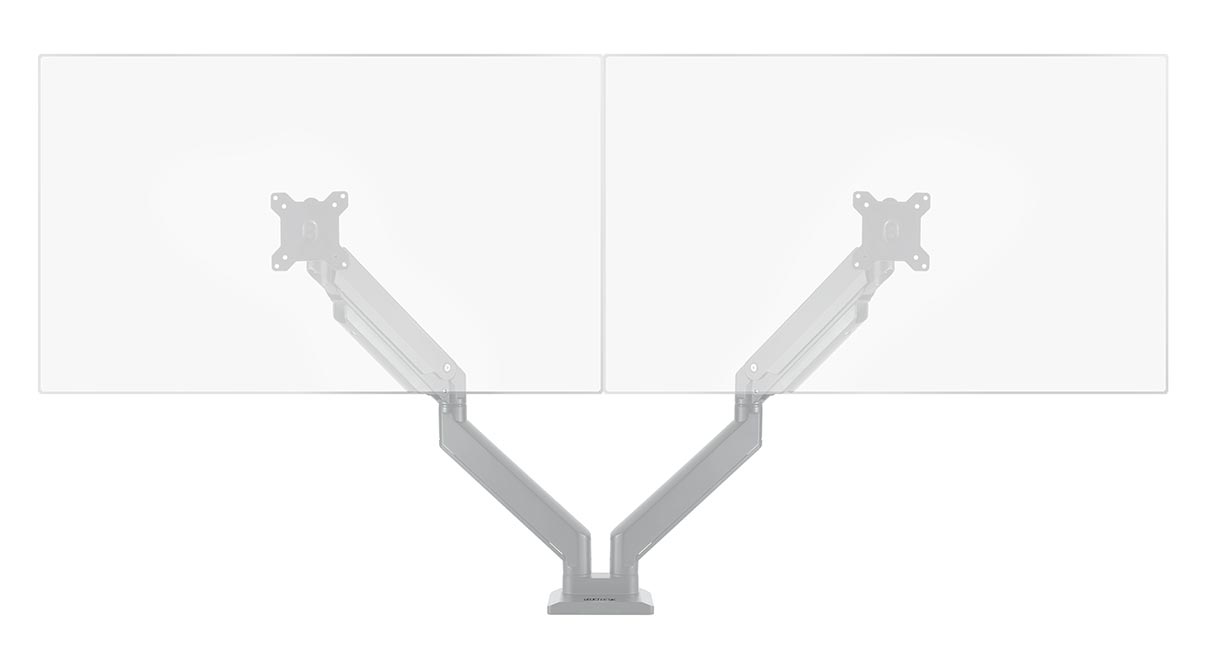

Running larger or heavier monitors? The Crestview Dual Monitor Arm by UPLIFT Desk ($189) holds 33 lbs per arm with a 13-inch vertical adjustment range.
Laptop users who want a single cable connection should add a USB-C Docking Station ($150-180) to drive both screens from one USB-C port.
Why a Monitor Arm Changes Everything
Placing monitors directly on a desk creates two problems. First, the stands take up a surprising amount of surface area. A pair of standard monitor stands eat roughly 2 square feet of desk space that could hold a keyboard, notebook, or coffee. Second, most monitor stands put the screen too low, which means you tilt your head down all day and end up with neck strain.
A monitor arm lifts both screens off the desk entirely. You get the full surface back and you can dial in the exact height and angle that keeps the top of the screen at eye level, which is where ergonomics guidelines say it should be. Arms also let you push screens back toward the wall when you need desk space, then pull them close when you're heads down on detail work. If you're using an UPLIFT V3 Standing Desk, the 48 threaded mounting points on the steel frame make arm installation clean and secure.
Choose Your Layout and Arm
Before you buy anything, decide how you want your screens arranged. Each layout has different hardware requirements, and the arm you need depends on your layout and monitor weight. Most 24 to 27-inch monitors weigh 8 to 15 lbs with the stand removed.
Side by side is the most common layout. Two monitors sit next to each other at the same height. Works best with two matching screens in the 24 to 27-inch range. Best for spreadsheet work, code plus preview, email plus documents. Works well for anyone who drags windows between screens constantly.
Stacked (top and bottom) saves horizontal desk space and works well when your screens are different sizes. Think a 27-inch primary on the bottom and a smaller secondary on top. Best for narrow desks under 48 inches, ultrawide primary with a secondary above, or video calls where you want the camera centered between screens.
Primary plus angled side panel puts a large center monitor with a smaller screen angled 30 to 45 degrees to one side. Best for developers, traders, or anyone with a clear primary task and secondary reference material.
| Arm | Price | Layout | Weight Capacity | Screen Size | Mount Type |
|---|---|---|---|---|---|
| Moontower Dual (UPLIFT Desk) | $89 | Side by side | 14-17 lbs/arm | Up to 27" | Clamp |
| Crestview Dual (UPLIFT Desk) | $189 | Side by side | 33 lbs/arm | 32"+ capable | Bolt through |
| WALI Stacked Mount | $35-45 | Stacked vertical | 22 lbs/arm | Up to 27" | Clamp/grommet |
| Ergotron LX Dual | $300-400 | Side by side | 25 lbs/arm | Up to 27" | Clamp/grommet |
Budget pick: The Moontower Dual by UPLIFT Desk at $89 is hard to beat for standard 24 to 27-inch monitors. It uses powder-coated steel that matches most desk frames and includes cable clips along the pole. If you later want to add a third screen, the same pole system scales to triple ($119), quad ($149), and even six-monitor ($189) configs. Available through UPLIFT Desk with free shipping.
Heavy monitors or 32-inch screens: The Crestview Dual by UPLIFT Desk holds 33 lbs per arm and has a 13-inch vertical adjustment range. It bolt-mounts for maximum stability, which matters with heavier screens. Available through UPLIFT Desk.
Stacked layout: The WALI Stacked Mount is the only budget option for vertical stacking at $35-45. It supports up to 22 lbs per arm with standard 75mm and 100mm VESA holes.
Premium: The Ergotron LX Dual uses a Constant Force spring mechanism that never loses tension over time, unlike gas spring arms that gradually sag. It costs more but comes with a 10-year warranty. For single-arm needs, the Range-X by UPLIFT Desk ($89) offers the UPLIFT Desk 15-year warranty.
Tip: Check your monitor's VESA pattern before ordering. Most monitors use 75x75mm or 100x100mm, but some ultrawide and curved screens use 200x100mm. Both UPLIFT Desk arms offer a 200x100mm adapter for $19.
Connect Your Monitors
How you connect depends on whether you're running a desktop PC or a laptop.
Desktop with a dedicated graphics card: You usually have multiple video outputs. Connect each monitor with its own cable and you're done. Use DisplayPort when available. It supports daisy chaining (one cable from the PC to monitor one, then one cable from monitor one to monitor two) and higher refresh rates than HDMI.
Laptop with one USB-C port: To drive two external monitors from a single port, you need a docking station. The USB-C Docking Station ($150-$180) gives you dual HDMI plus a DisplayPort output from one USB-C cable. It also adds USB-A and USB-C ports, ethernet, SD card slots, and audio. One cable replaces your entire peripheral connection mess.
Laptop with two USB-C video ports: You can skip the dock entirely and use two USB-C to DisplayPort cables ($15-20 each) for a direct connection. Check your specs first because not all USB-C ports carry video. This is the simplest setup with the fewest potential issues.
Laptop with one USB-C plus one HDMI: Use a USB-C to DisplayPort cable for one monitor and HDMI for the other. Total cable cost under $30.
Tip: MacBook users should check Apple's external display limits. M1 and M2 MacBook Air models only support one external display natively. M1/M2 Pro and Max chips support two or more. M3 and M4 base models support two. If your Mac is limited, a DisplayLink dock is the workaround, but that requires a driver and uses more CPU.
Set Up Step by Step
Step 1: Test Before You Mount
Connect both monitors to your computer while they're still on the desk. Confirm that your operating system detects both screens and that you can extend your display across them. This saves you from mounting everything only to discover a cable or adapter doesn't work.
On Windows, go to Settings, System, Display. You should see both monitors listed. Click Identify to see which is which, then drag them into position to match your physical layout. On macOS, go to System Settings, Displays, Arrangement.
Step 2: Remove Monitor Stands and Attach VESA Plates
Flip each monitor face down on a soft surface (a towel on the desk works). Remove the stock stand, which is usually four screws on the back. Attach the VESA plate from your arm using the same screw holes. Finger tight first, then snug with a screwdriver. Don't overtighten.
Step 3: Mount the Arm
Clamp mount (Moontower, WALI): Position the clamp on your desk's back edge, centered behind where you sit. Tighten the clamp until firm but not cranking. You shouldn't hear the desk creaking.
Bolt through mount (Crestview): Drill a hole through the desk if there isn't already a grommet hole. Feed the bolt through and tighten from underneath. This is more stable for heavy monitors but permanent. If you're using an UPLIFT V3 Standing Desk, the existing grommet holes and 48 threaded mounting points make bolt-through installation straightforward.
Step 4: Attach Monitors and Position
Hang each monitor on the arm. For side-by-side setups, position the inner edges of both screens close together with minimal gap so the seam disappears when you look straight ahead. Angle each screen slightly inward so they form a gentle curve around your sitting position.
For stacked setups, place your primary monitor at eye level and the secondary directly above. Tilt the top screen downward about 10 to 15 degrees so you can read it without craning your neck.
Step 5: Route Cables, Power, and Ergonomics
Run video and power cables along the monitor arm's built-in cable channels. Most arms have clips or channels along the arm for this purpose. From the arm base, route cables down to your desk's cable tray or directly to the computer.
If you have a standing desk, leave extra cable slack at every joint. The cables need room to flex when the desk changes height. A loose S-curve between the arm base and the cable tray handles this. If you're using an UPLIFT V3 Standing Desk, the included FlexMount Cable Management system handles most of the under-beam routing.

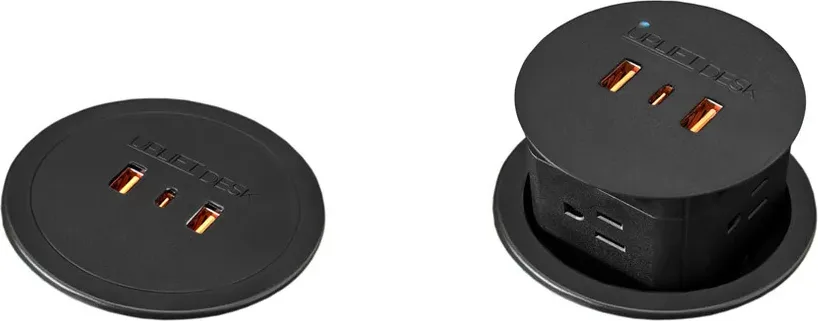

For a clean power setup, the Power Grommet by UPLIFT Desk ($89) drops power and USB access right through the desk surface, so you don't need to run power cables over the desk edge.
Once everything is routed, fine-tune your positioning. The top edge of your primary monitor should be at or slightly below eye level, about 20 to 26 inches from your eyes. Tilt each screen back 10 to 20 degrees. For side-by-side layouts, angle the inner edges slightly toward you so both screens are roughly equidistant from your eyes. Your primary monitor should be directly in front of you. If you use both screens equally, center the gap between them so your head turns an equal amount in each direction.
Tip: Label your cables with small tags or colored tape at both ends. When you have 6 or more cables running to two monitors, a dock, and peripherals, you'll be glad you can tell which cable goes where without tracing the whole run. See our cable management guide for the full approach.
Frequently Asked Questions
Can I mix different size monitors?
Yes. Many people use a 27-inch primary with a 24-inch secondary, or an ultrawide with a standard screen above it. Just adjust the arm heights so the top edges align (for side by side) or so the primary sits at eye level (for stacked). Mixing sizes is easier with individual arms or a stacked mount than with a fixed dual arm bar.
Does a dual monitor setup use more electricity?
Barely. A typical 27-inch monitor uses 25 to 40 watts. Adding a second monitor costs roughly $3 to $5 per month in electricity. A docking station adds about 5 to 15 watts on top of that.
My desk is only 48 inches wide. Can I fit two monitors?
Yes, but choose your layout carefully. Two 24-inch monitors side by side need about 44 inches of width, which is tight but doable on a 48-inch desk. Two 27-inch monitors will overhang the edges. For narrow desks, a stacked layout using the WALI Stacked Mount keeps both screens in a 27-inch wide column, leaving plenty of desk space on each side.
Do I need a docking station or can I use a USB hub?
A basic USB hub doesn't carry video. You need either a docking station with dedicated video outputs or direct cable connections from your computer's video ports. If your laptop has enough video-capable ports for all your monitors, skip the dock and save the money.
Will this work with a KVM switch for two computers?
Yes. If you share your monitors between a work laptop and a personal machine, connect the KVM switch between your computers and the monitors instead of connecting directly. Our KVM Switch Setup Guide covers this in detail, including dual-monitor KVM options.
How do I handle video calls with dual monitors?
Position your webcam centered above your primary monitor. During calls, move the video call window to the screen directly below the camera so you look roughly into the lens when watching the call. If your webcam clips to one side, your eye contact will appear off center to other participants. The Video Call Desk Setup Guide covers camera positioning in depth.
What standing desk works best for a multi-monitor setup?
The UPLIFT V3 Standing Desk is ideal for multi-monitor setups. Its 355 lb weight capacity handles the extra weight of two or three monitors plus arms without strain. The 48 threaded mounting points on the steel frame let you attach UPLIFT Desk monitor arms directly without drilling. Desktop sizes up to 80 inches wide accommodate even triple-monitor layouts with room to spare. The UPLIFT Desk 15-year frame warranty covers everything. See our Best Standing Desks Under $700 guide for the full comparison.
All recommendations are based on specification analysis, expert reviews, and owner feedback, not personal testing.
